Cerium doped Lutetium Aluminium Crystal (Ce:LuAG Crystal
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Product Details
| Material | Ce:LuAG |
| Density | 6.73 g/cm3 |
| Crystal Structure | Cubic |
| Synonyms | LuAG raw disk, Ce:LuAG Crystal, LuAG Disc |
Cerium doped Lutetium Aluminium Crystal Description
Cerium doped Lutetium Aluminium Crystal (Ce:LuAG) is a well-established scintillator and has many attractive properties, such as fast decay (80ns), high light yield, and emission peaks at 510nm that are well matched with the sensitivity of commercial Si-CCD detectors as well as good mechanical and chemical stability. The Ce:LuAG Crystal is also a very appropriate crystal for imaging screens, LED lighting and laser lighting.
Cerium doped Lutetium Aluminium Crystal Specification
| Main Properties | |
| Chemical Formula | Ce:Lu3Al5O12 |
| Density | 6.73g/cm³ |
| Hardness | 8.5 Mohs |
| Melting point | 1970℃ |
| Emission peak | 510nm |
| Lattice constant | a=11.914Å |
| Refractive Index | 1.84 |
| Expanding coefficient | 8.8*10-6/℃ |
| Decay time | 80 ns |
| Energy resolution | <8% |
| Optical Properties | |
| Orientation | ＜0.5° |
| Thickness /Diameter Tolerance | ±0.05mm |
| Parallelism | ＜10″ |
| Surface Quality | 10/5 |
| Perpendicularity | ＜15′ |
| Chamfer | ＜0.1*45° |
| Dimensions | Max φ60mm |

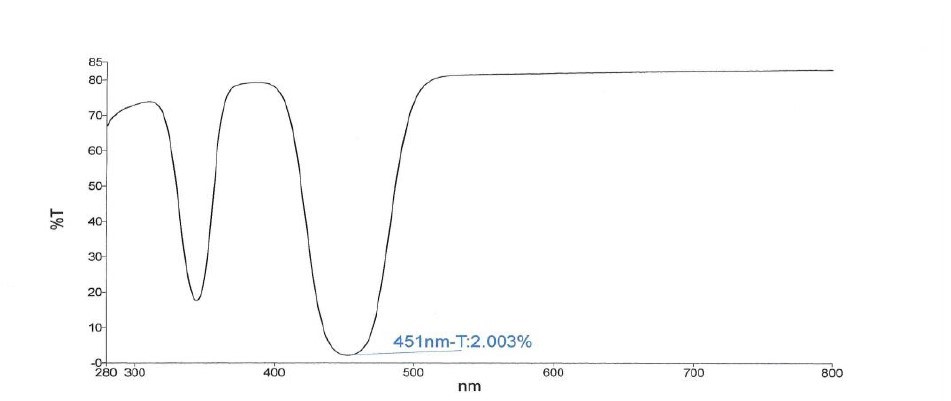

Cerium doped Lutetium Aluminium Crystal Transmission Curve
Cerium doped Lutetium Aluminium Crystal Applications
It is a very appropriate crystal for imaging screens, LED lighting and laser lighting.
Cerium doped Lutetium Aluminium Crystal Packaging
Our Cerium-doped Lutetium Aluminium Crystal is carefully handled during storage and transportation to preserve the quality of our product in its original condition.
